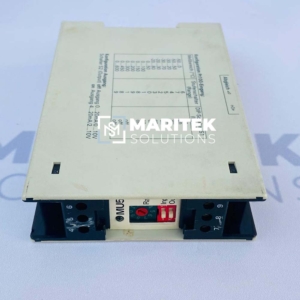

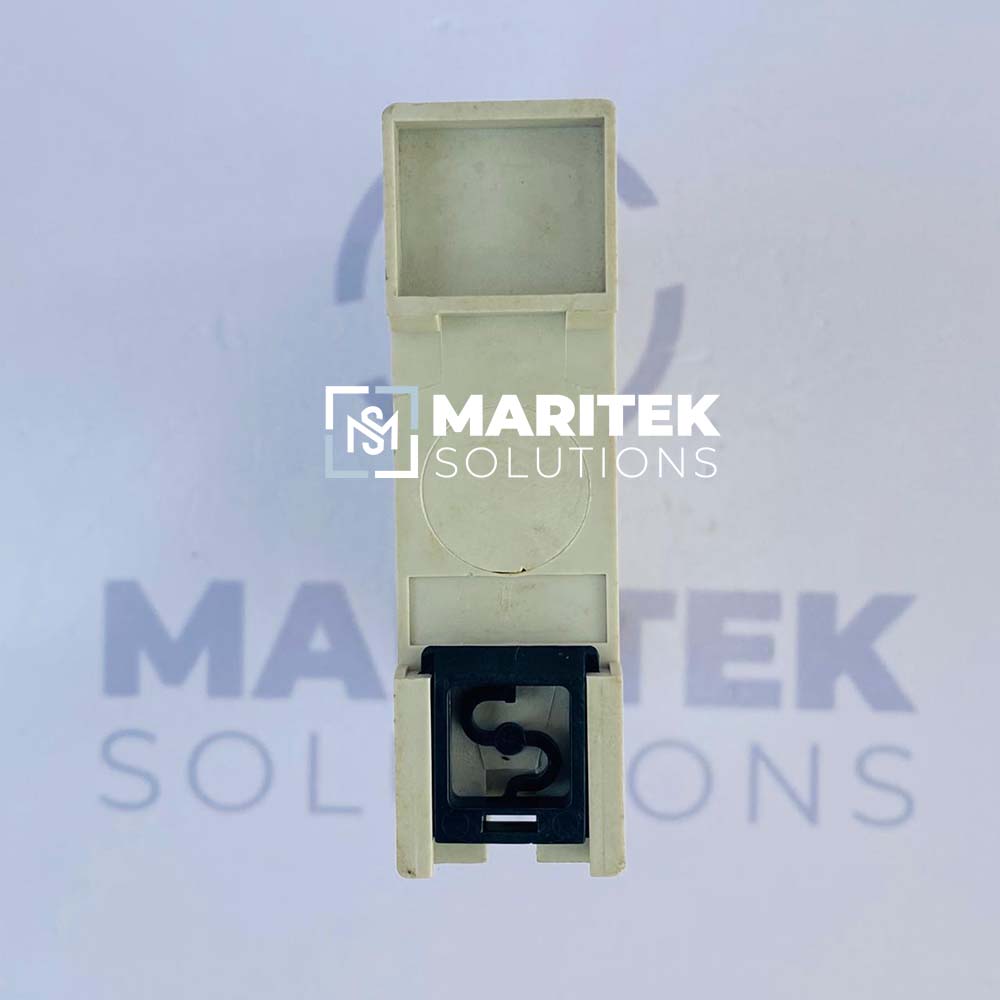

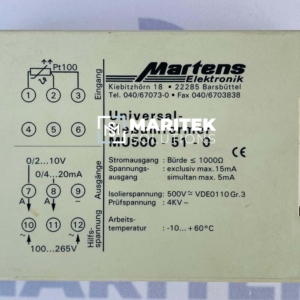

Martens MU500-51-0 Universal Transducer



Specification



Manufacturer: Martens
Model: MU500-51-0
Type: Universal Transducer
Condition: Used

CONTACT US

Or



Call : +91-7226017401



Description

  • Manufacturer : Martens
  • Model : MU500-51-0
  • Type : Universal Transducer
  • Condition : Used



Maritek Solutions can supply new and refurbished parts of Martens MU500-51-0 Universal Transducer.
To receive a quote for any Martens Universal Transducer, Kindly email us at sales@mariteksolutions.com.

Technical data

The Martens MU500-51-0 is a versatile temperature transmitter designed for use with RTD (Resistance Temperature Detector) sensors, specifically Pt100 or Pt1000.

Input Compatibility: The MU500-51-0 accepts Pt100 and Pt1000 RTD sensor signals.

Switch-Selectable Temperature Ranges: You can configure the measuring range using a front-mounted 10-step rotary switch and two DIP switches. There are 13 switchable temperature ranges for Pt100 and 16 for Pt1000.

Output Signals:
Current Output: 0/4…20 mA (with a maximum burden of 1 kΩ)
Voltage Output: 0/2…10 V (simultaneously with the current output, max load 15 mA, short-circuit-proof)

Operating Temperature: The device operates within a temperature range of -10°C to +60°C.

Power Supply: Supports a wide range of supply voltages (100…265 V AC or 10…30 V AC/DC).
